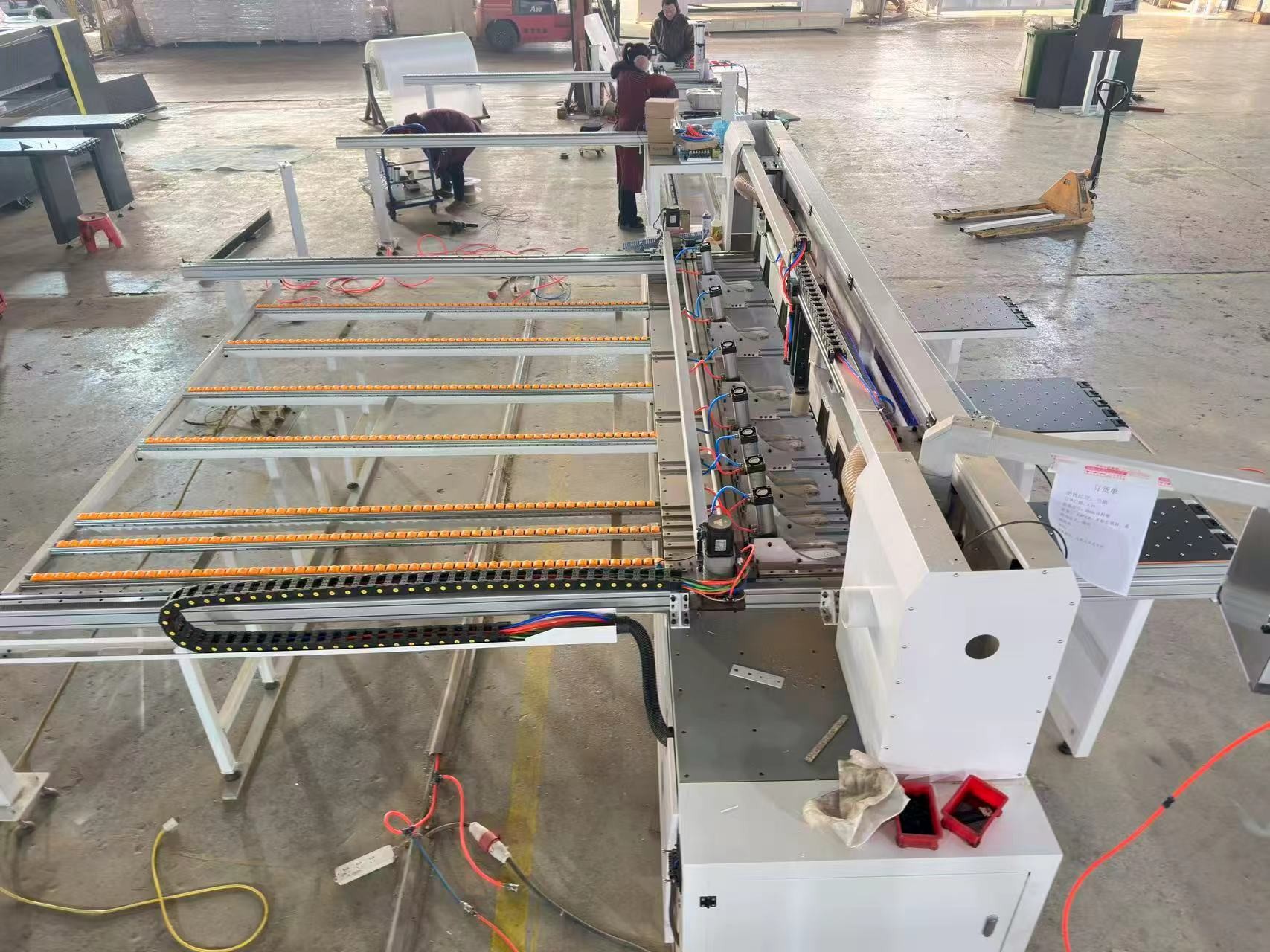

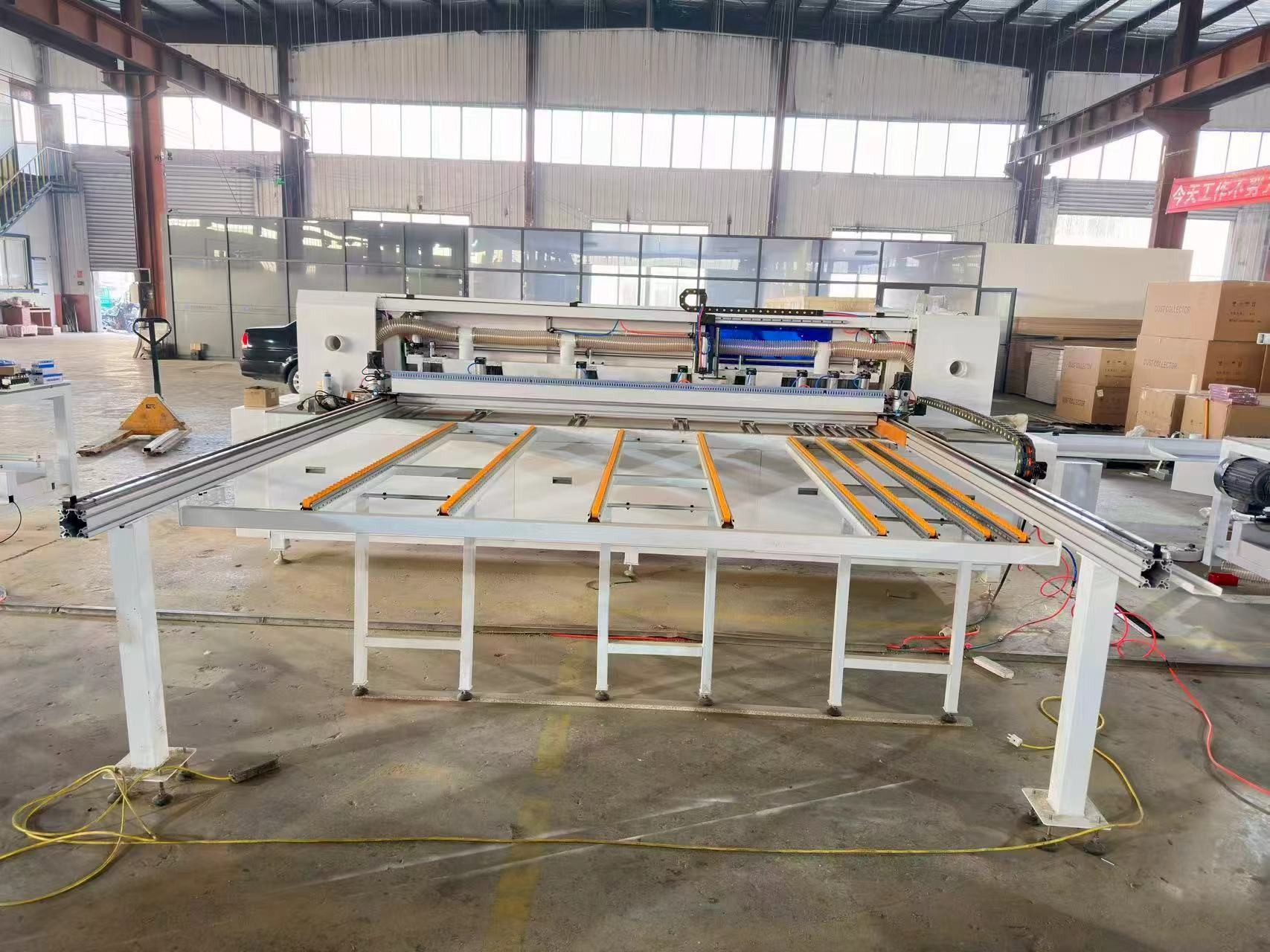

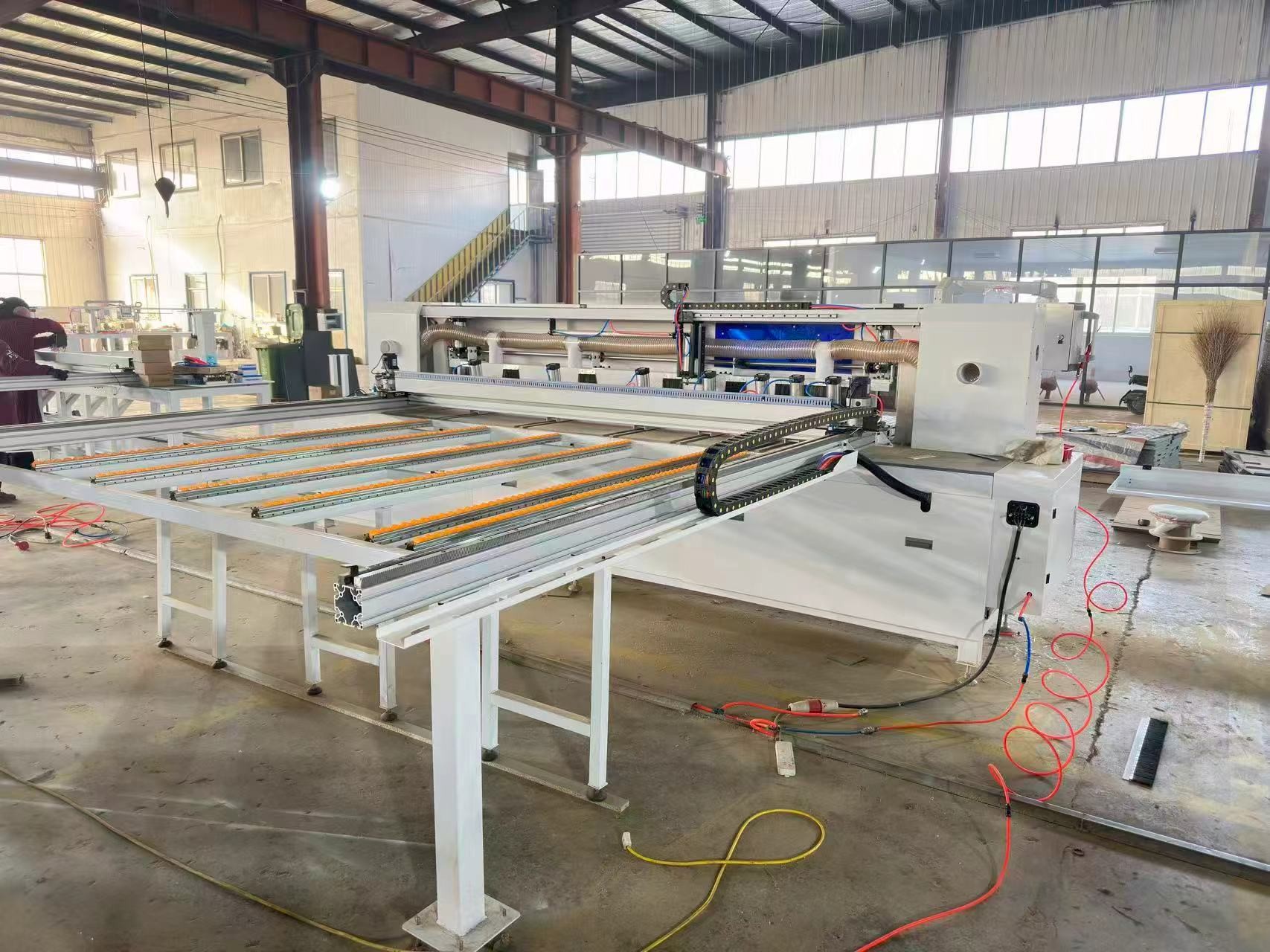

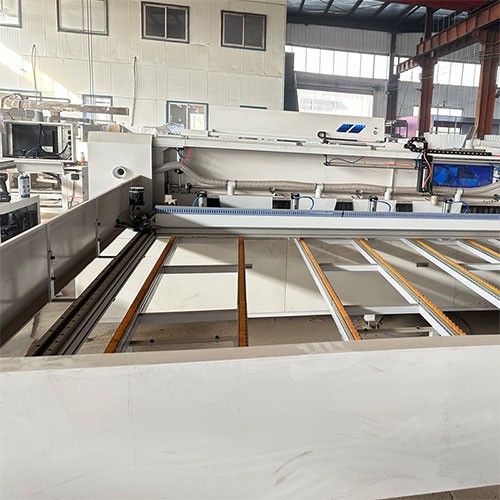

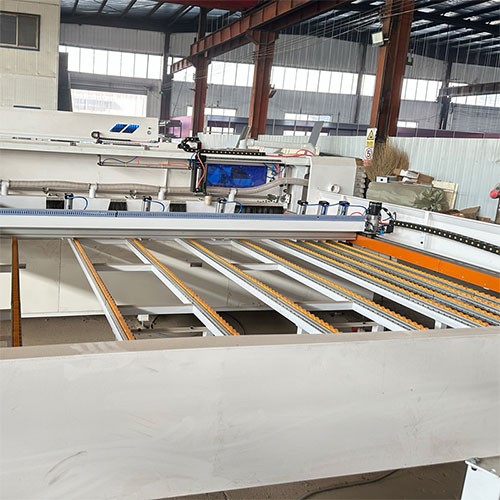

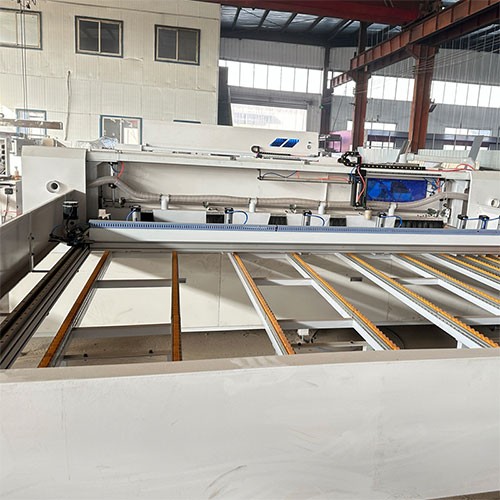

490SY300 electronic CNC Cutting saw machine

Features：

• Large processing range: max cutting size 2800×2800mm and cutting thickness up to 60mm, suitable for big panel processing.

• Stable power system equipped with main, auxiliary and multiple servo motors, ensuring precise feeding and smooth movement.

• High-speed saw spindles: main spindle 5000rpm, scoring saw 6000rpm, delivering clean cutting surfaces without edge chipping.

• Adopts Japan HIMPO reducer for durable transmission; 10-inch Xiankong touch screen for intuitive operation.

• Wide compatibility: standard 380V voltage (customizable), works under air pressure 0.6-0.8MPa, fits regular factory conditions.

• Complete rigid structure with overall weight 1500KG, stable running during long-hour continuous work.

• Robust overall structure with machine weight of 1500KG, effectively reducing vibration during high-speed cutting and improving processing precision.

• Independent feeding and moving servo motors deliver smooth, accurate panel positioning, greatly lowering error rates for batch cutting.

• Equipped with separate main saw and scoring saw. The pre-scoring design prevents board edge cracking and guarantees neat cutting edges.

• Standard 380V power supply with customizable voltage options, adaptable to power grids in different countries and regions.

• Requires only conventional air pressure of 0.6-0.8MPa, compatible with common factory air compressor systems without extra air supporting equipment.

• Standard spindle diameters and matched saw blade sizes achieve perfect cutting performance while extending the service life of saw blades.

• High-speed spindle operation ensures high cutting efficiency, supporting long-time continuous production for woodworking factories.

• Premium HIMPO reducer from Japan provides stable transmission performance, low noise and long service life with less maintenance work.

• 10-inch Xiankong touch screen realizes visualized parameter adjustment, simple operation and easy daily equipment debugging.

• Reasonable power distribution of main, auxiliary and servo motors balances cutting power and energy consumption to save production costs.

Application Scenarios

1. Furniture manufacturing factory: For cutting solid wood panels, particle boards, MDF, plywood and melamine boards used in wardrobes, cabinets, tables and chairs.

2. Woodworking processing plants: Mass cutting of large-size wood sheets for customized wooden products.

3. Decoration material factories: Processing decorative wood panels, wall panels and door panels with smooth cutting edges.

4. Wooden door production lines: Precise sizing of raw boards for solid wood doors and composite interior doors.

5. Custom home workshop: Small-batch and multi-specification cutting for personalized custom furniture orders.

6. Packaging wood processing: Cutting wooden boards for wooden packing cases and pallets.

7. Building material processing factory: Machining wood panels used in interior construction and renovation projects.
